The MxPro 5 series control panels are fully expandable from 1 - 2 loops and supplied with 2 on-board sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 system LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation.



The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select and click programming aid for engineer configuration and end user operation. Powerful cause-and-effect programming and enhanced trace diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable onsite via the on-board alphanumeric keypad, or PC-NeT configuration software.



PC Software: An extensive suite of user-friendly Windows based PC software programs has been developed to enhance your experience when using MxPro 5 Series of Fire panels. The suite incorporates a number of different programmes to include a configuration, service, logo and virtual panel tool to allow the flexibility of the equipment to be fully explored.



Network: Simply adding a network card allows the panel to communicate with any other MxPro 5/MxPro 4 fire panel, remote terminal, or network peripheral, such as, ‘ipGateway™’ or BMS/Graphical Interface. The network operates as a true peer-topeer system and can be configured in a fault-tolerant loop or radial format.

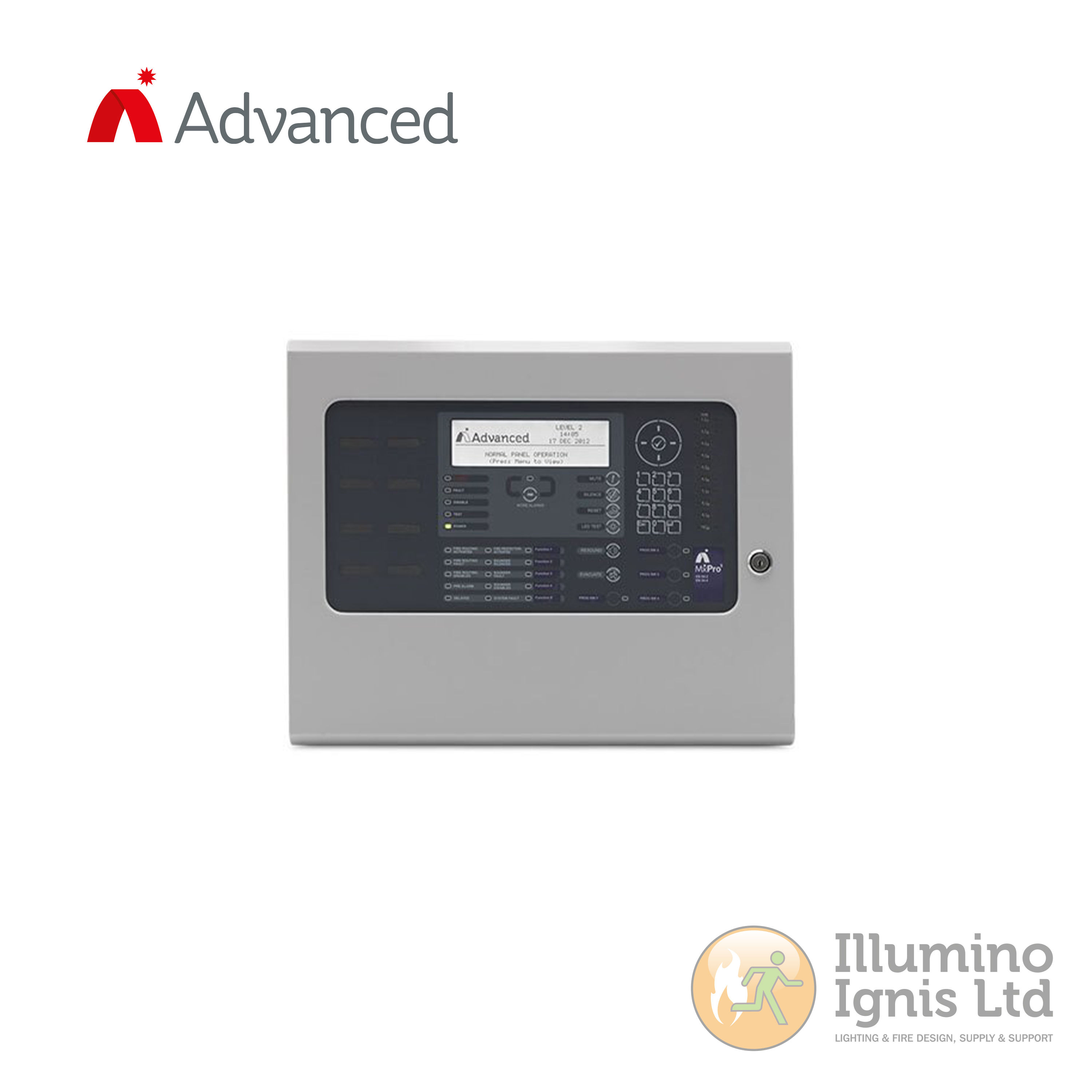

1 Loop Panel Extendable To 2 Loops (1 Loop Card Fitted & Tested)

SKU: MX-5201
    • Apollo, Argus Vega, Hochiki & Nittan Evolution protocol support.
    • Advanced graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware.
    • Dual flash-based microprocessor technology with real-time clock on-board.
    • Dedicated USB & RS232 serial port for direct PC or modem connection.
    • Installer friendly Auto-learn, Loop Detection and On-board Scope facilities for ease of commissioning and fault finding.
    • Graphical display configurable for virtually any language
    • Robust removable equipment chassis with plug-in connectors for simple fixing and cable termination.
    • Fully programmable via the on-board alphanumeric keypad, or PC configuration tools.
    • Integral ‘P-Bus’ for system expansion via available option cards
    • Ad-NeT peer-to-peer network with up to 2000 zones
    • Approved to BS EN54 part 2, 4 and 13
