The new Go series is an evolution for non-networked single-loop fire alarm systems. Its innovative design includes several improvements and upgrades to critical safety features, while retaining all the benefits and user-friendly operation of an Advanced fire alarm control panel.



A new ergonomic layout of control panel is combined with our high resolution, high contrast, graphical LCD display. The tactile keypad allows simple select-and-click programming for faster engineer configuration and simple end-user operation.



Functional improvements include integral zonal LEDs which enable instant identification of alarm locations, and ensure compliance with BS5839 without the cost of a separate LED zone card.



The new PCB integrates both control panel and peripherals on the same board and incorporates the latest high-speed micro- processor technology, for 9 times faster operation than MxPro 4.



Powerful cause-and-effect programming and enhanced trace diagnostics make the panel suitable for a wide range of site applications, from small to medium systems.



All Go series panels are fully programmable on site via the control panel display or with our updated, easy-to-use PC Configuration Tool.



Digital-ready FACP

The future-proof Go series is digital-ready for connection with our intuitive AdvancedLive Cloud app.



AdvancedLive provides remote visualisation and management of a fire system via instant communication with enabled devices, and reduction of false alarm evacuation occurrence and fire safety risks.

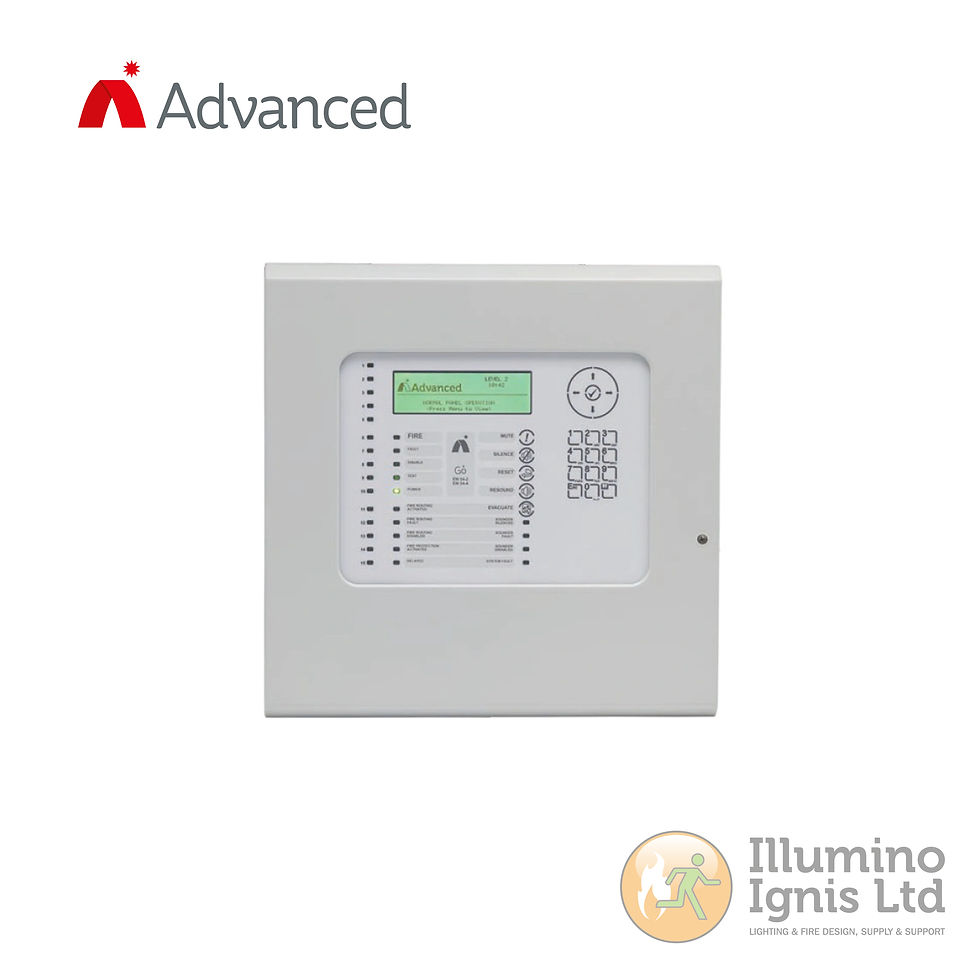

Go+ Panel (Full Protocol Quantity Non – Networkable)

SKU: GO+
    • Graphical LCD user interface, LED indicators & push buttons
    • Installer-friendly Auto-learn, Loop detection and On-board scope facility
    • 500 fire + 5000 general event logging, with advanced diagnostic precision to aid installation & fault-finding
    • Integral 15 Zone LEDs ensures compliance with BS5839, with 35 additional software indication zones
    • Uses a new Configuration Tool with Office365 appearance with better graphics and easier functions for programming
    • Two on-board Sounder outputs, three on-board Relay outputs
    • Optional 3 monitored input/outputs for Fire/Fault routing (with P-Bus adaptor & routing card) for full EN54 compliance when connected to an Alarm Receiving Centre
    • Dedicated USB Type B port for direct PC connection
    • Ethernet port for Cloud connection via AdvancedLive, to provide remote notification and panel management
    • Innovative 'no hinge' removable door and hangable chassis for easier installation
    • Employing an identical monitoring feature as the Mx-5000 series, the Go series meets the requirements of EN54-13 (2005) Clauses 5.3.4.1 and 5.3.4.2 (partial open & short circuits) for optimal fire system performance and complete peace of mind
